A-dec Lab Workstation & Simulator Pro

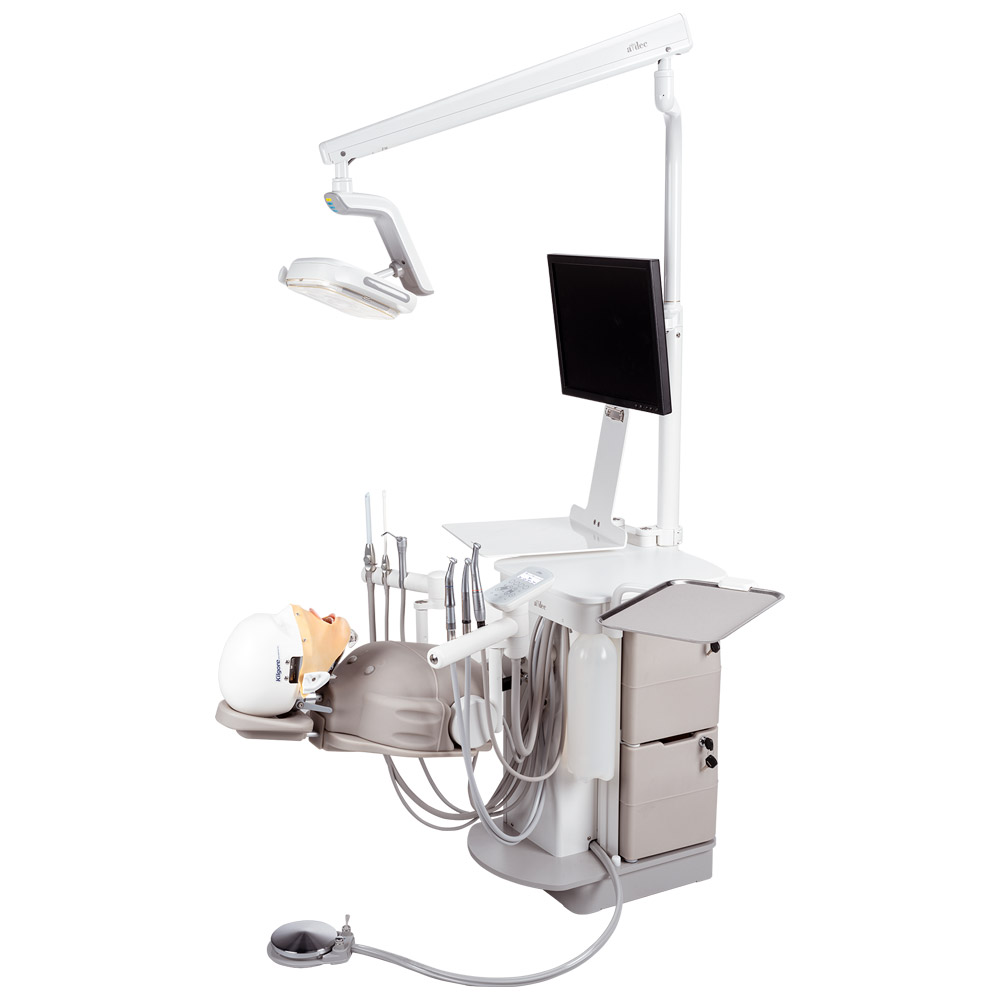

A-dec Simulator Pro
Build skills and confidence
The A-dec Simulator Pro facilitates learning with a high level of clinical relevance in a controlled environment. The optional A-dec+ Gateway enables software updates with the latest integrations and enhancements. It also adds the ability to manage and monitor dental equipment more efficiently.
Note: manikin sold separately.
- Reinforces proper positioning and posture
- Integrates multiple devices including air-turbine and electric handpieces, ultrasonic instruments, curing lights, intraoral cameras, and LED light options
- Available in stationary (A-dec 42pro) or tuck-away mobile (A-dec 41pro) styles
- Accommodates left-, right- and third-hand treatment techniques
- Customizable for manikin preference
- Includes self-contained water system, HVE (high volume evacuator) and QD (quick disconnect) syringe
- Top-side access ensures easy maintenance and service

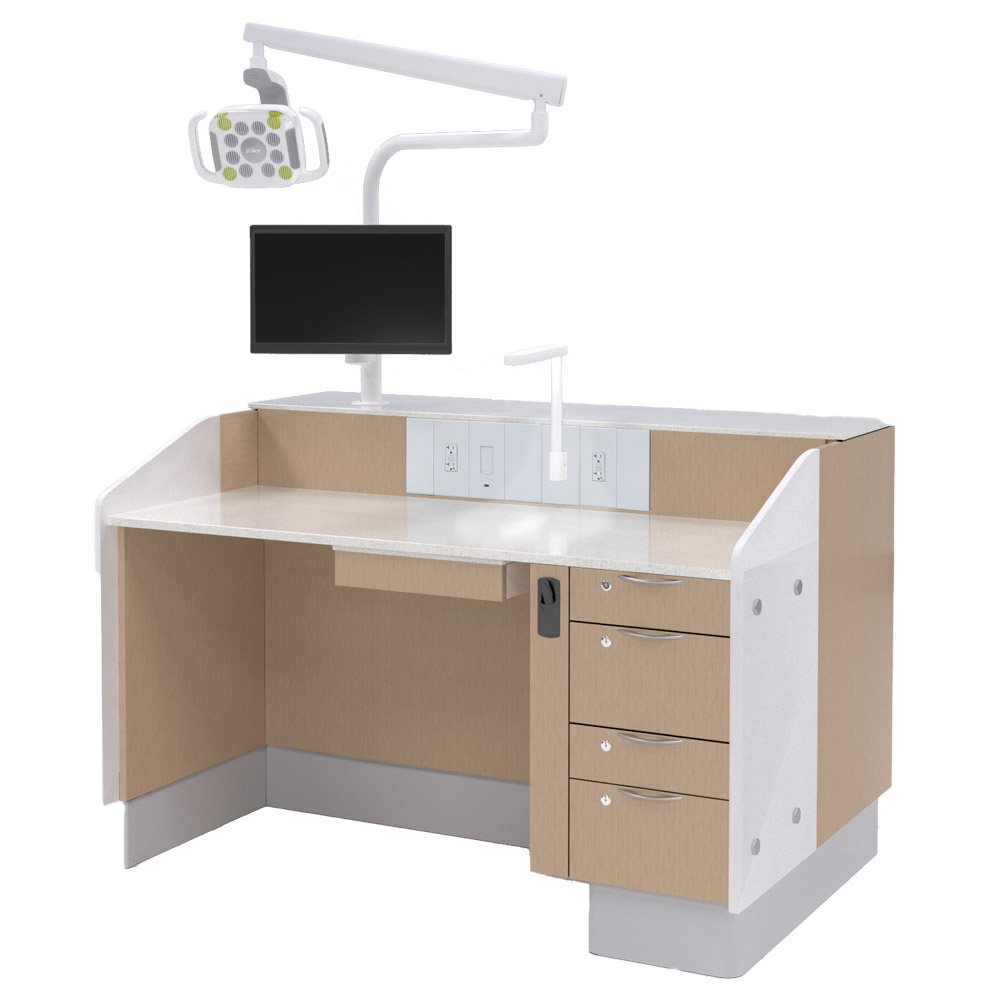

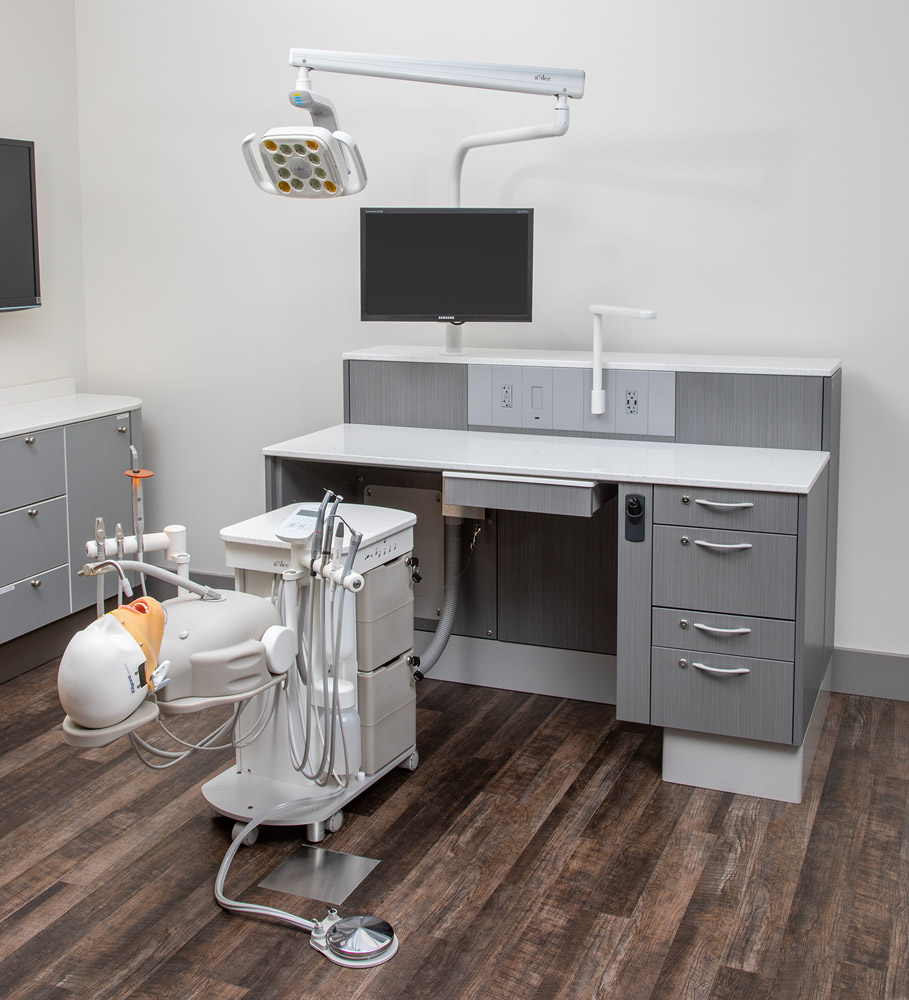

A-dec Lab Workstation
Designed with students in mind
Give your students what they need to succeed in the laboratory. The A-dec 598 Lab Workstation keeps clinical tools close at hand.
- Customizable to fit your space
- Durable, industrial-grade materials
- Available in single- or dual-configured designs

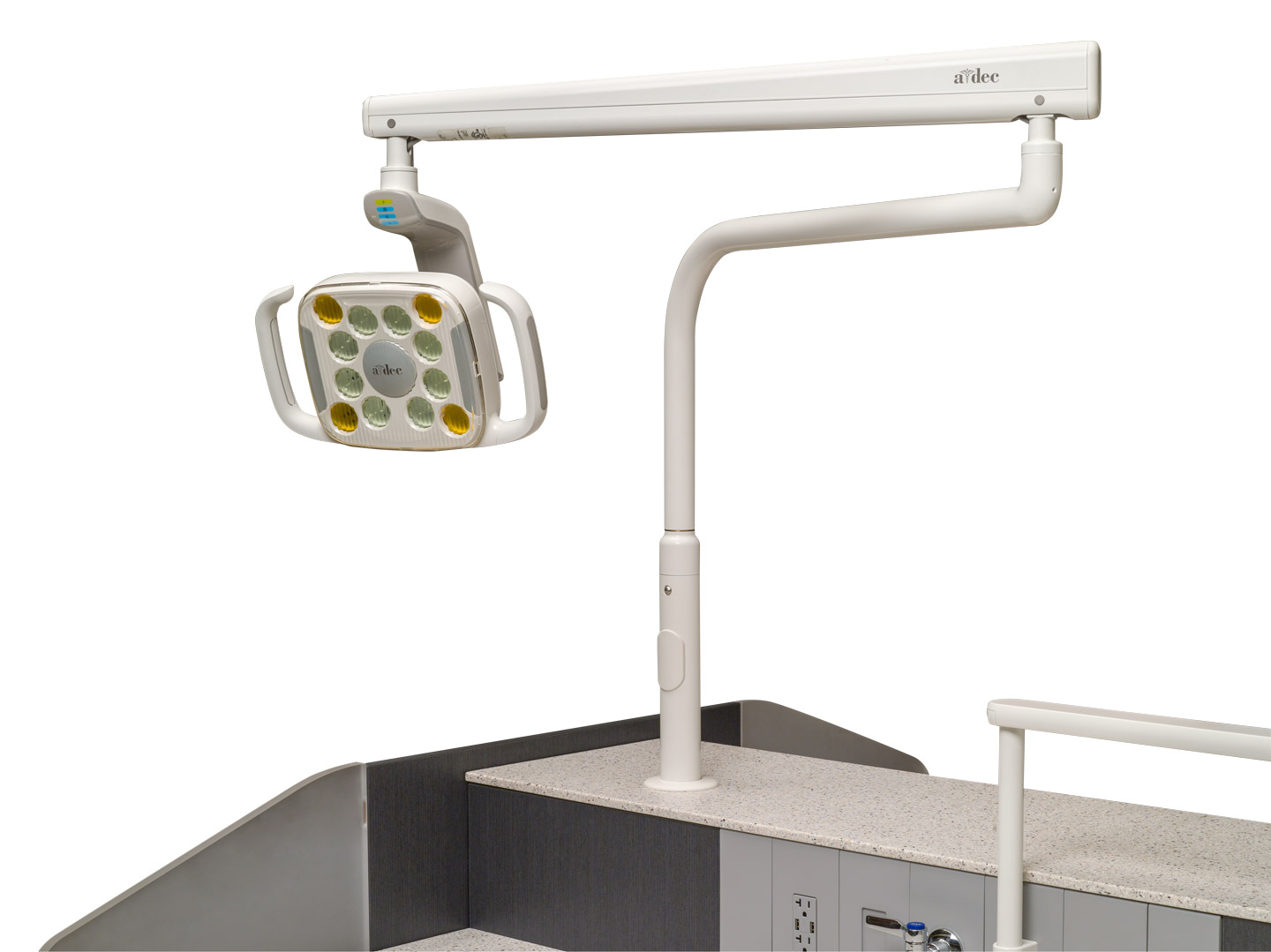

- Bright white, color-matched LED task light automatically turns on when positioned over the work surface
- Vacuum drawer captures particles during grinding; automatically shuts off when drawer is closed
- Monitor mount tilts and pivots for proper viewing angle

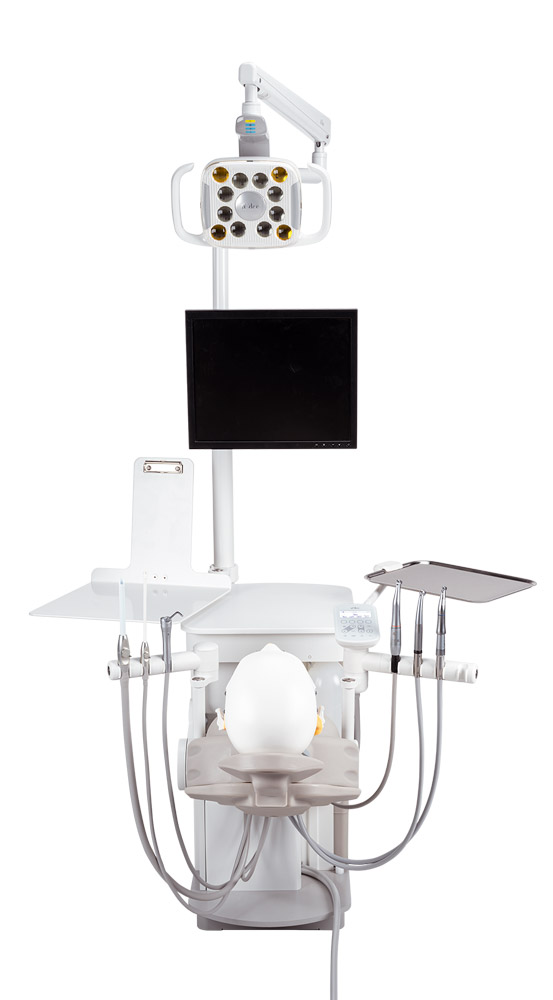

Stationary style (A-dec 42pro)

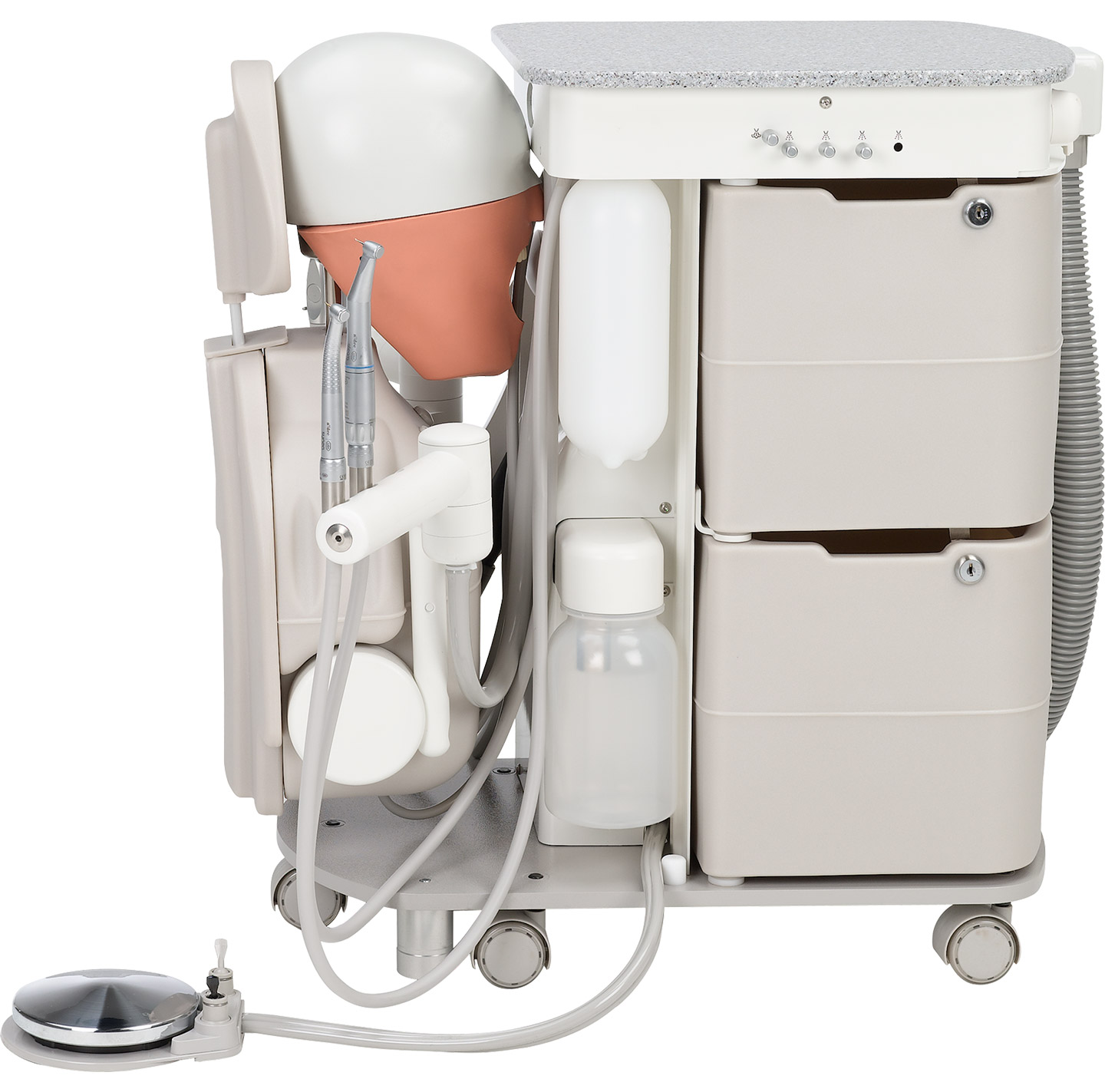

Tuck-away mobile style (A-dec 41pro)

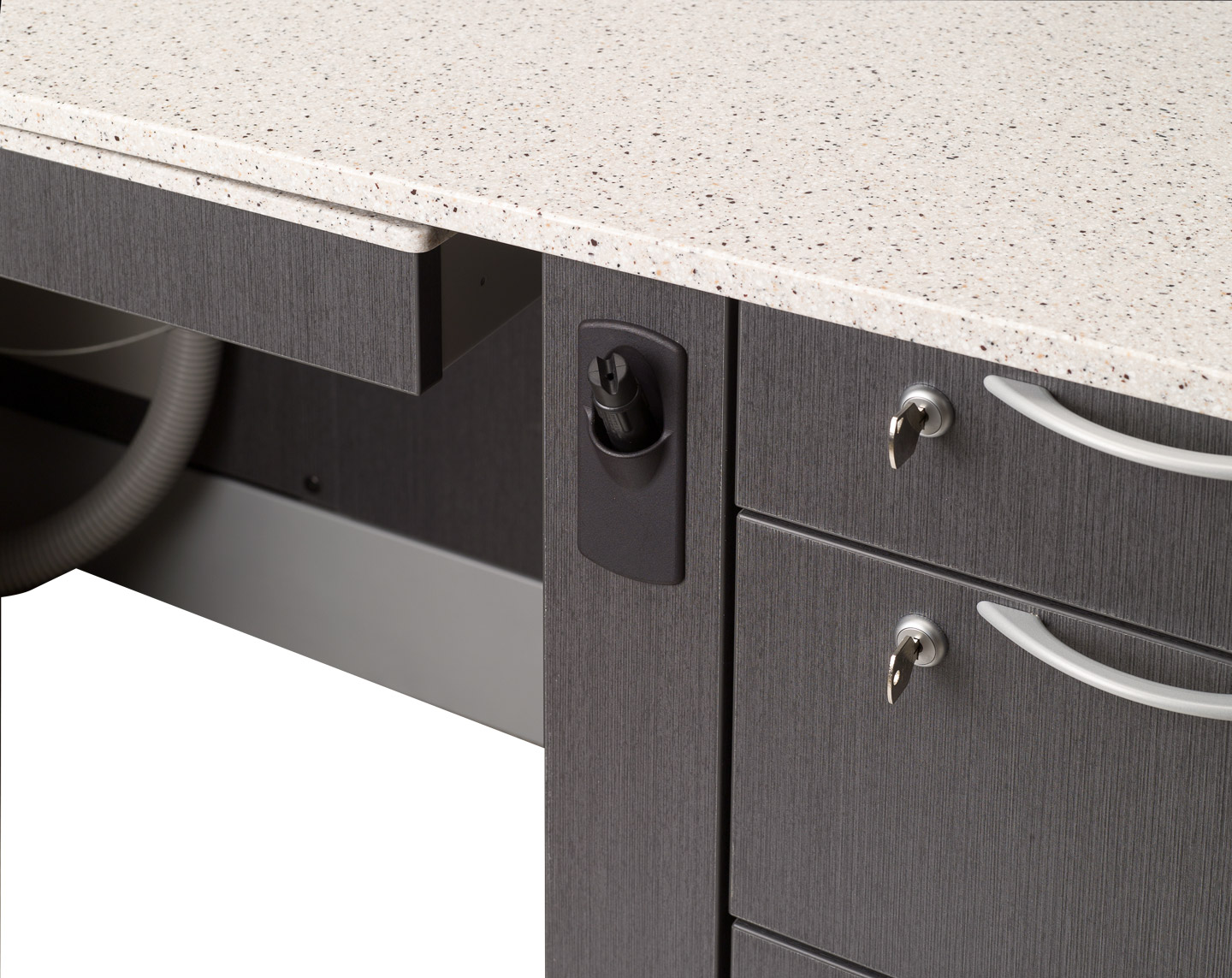

Air nozzle and locking drawers

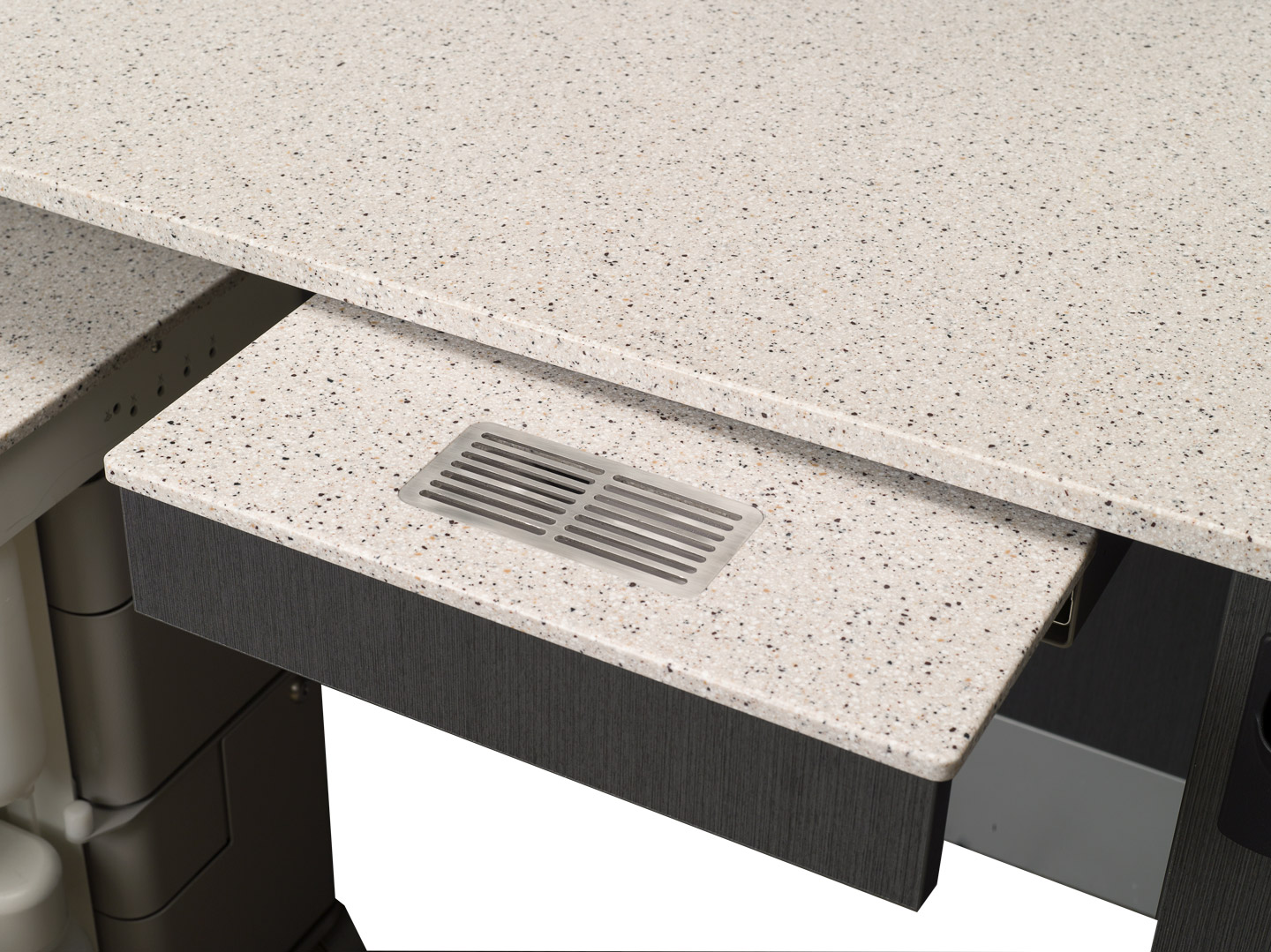

Vacuum drawer

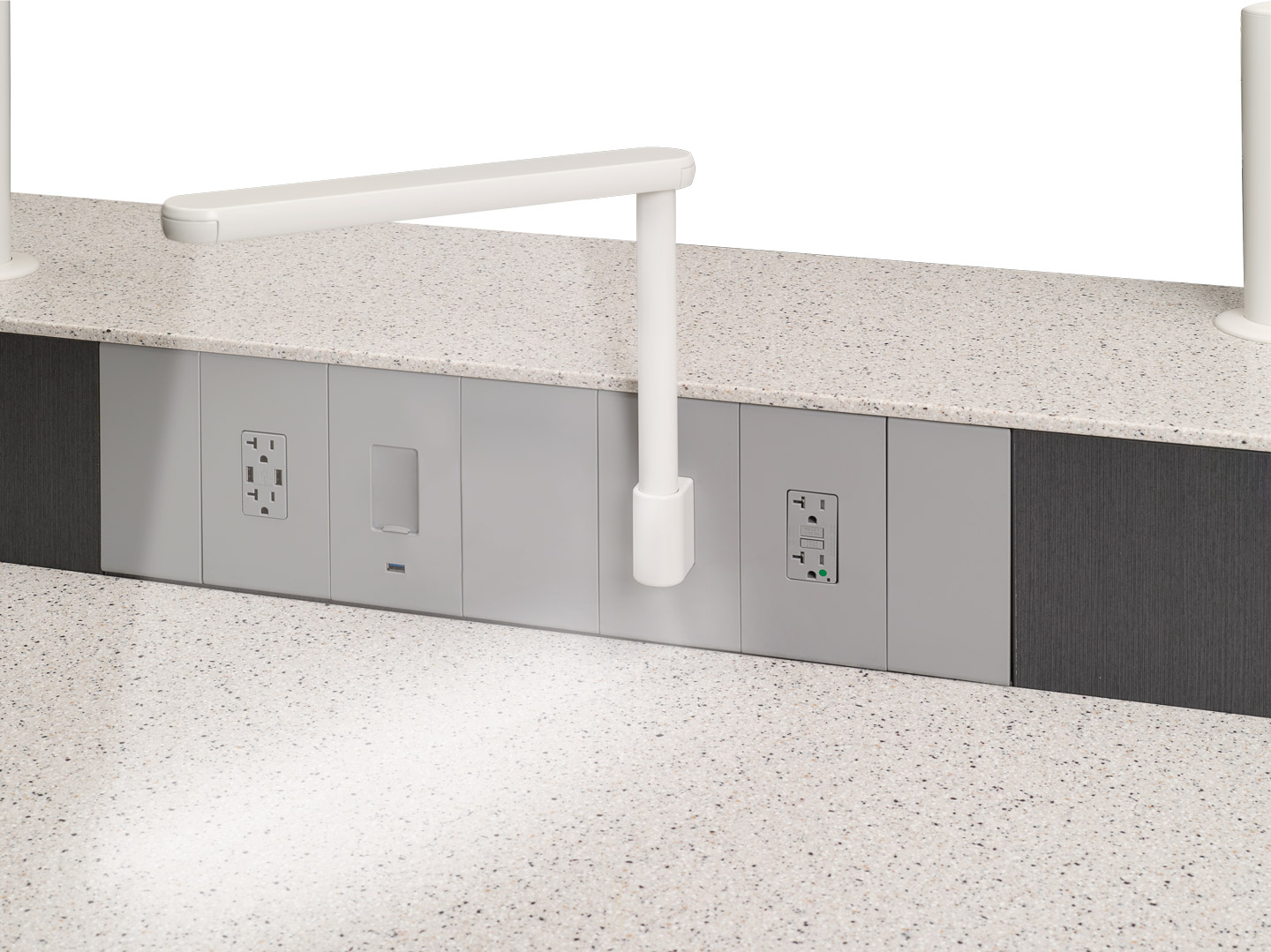

Customizable power panel

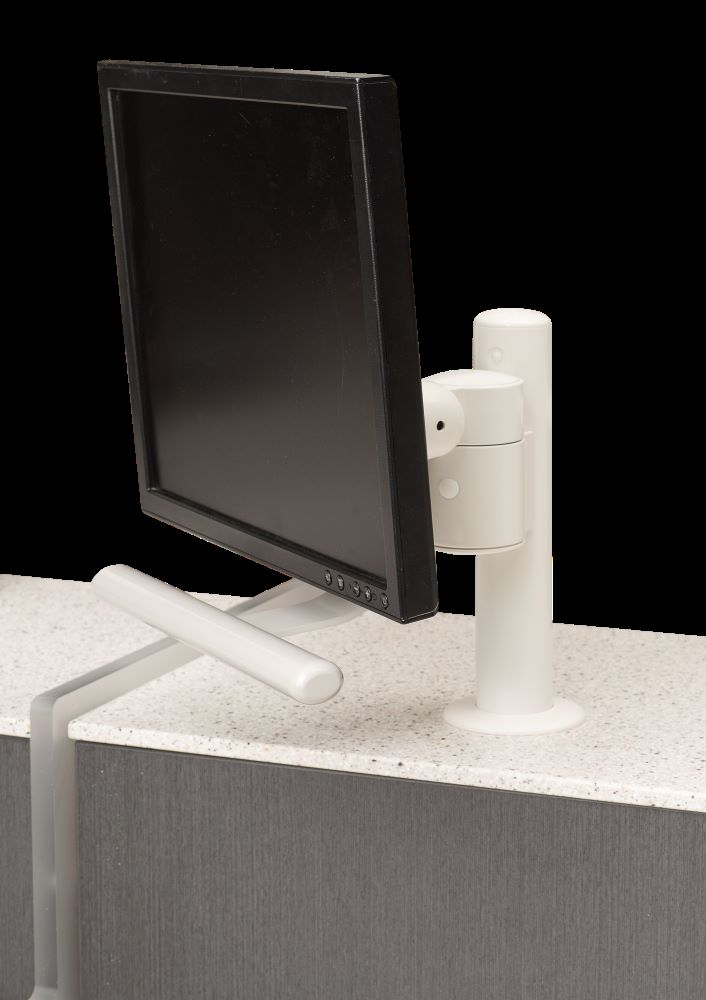

Monitor mount

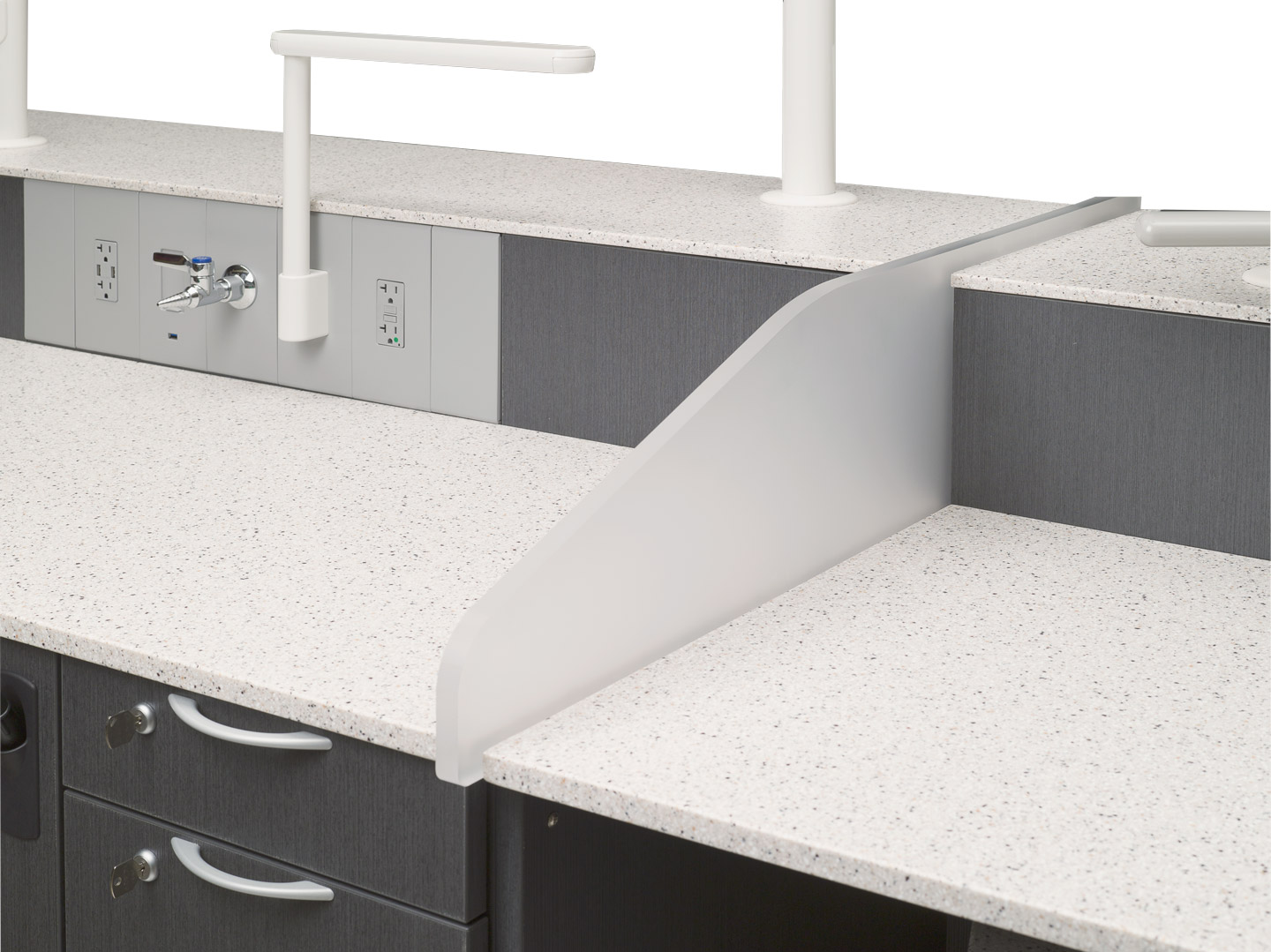

Full-height divider

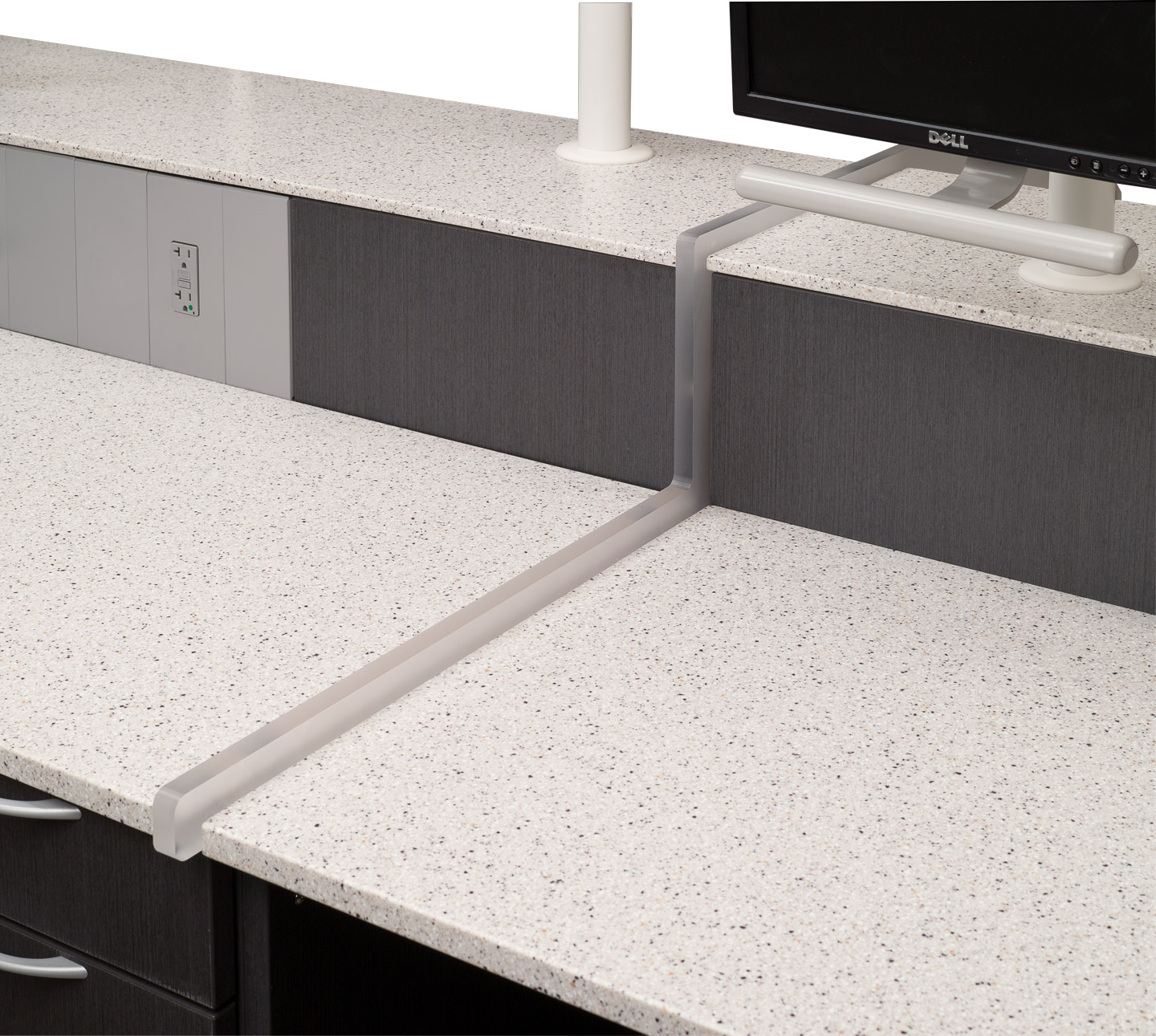

Partial-height divider
| A-dec Lab Workstation | |
|---|---|
| Bench options | Single-sided or double-sided |
| Bench width | 42"–65" |
| Bench depth | Double-sided: 48"–60" Single-sided: 30"–36" |
| Utility chase width | 12" |
| Utility chase height | 41.4" |
| Countertop height | 32" |
| Countertop depth | 18"–24" |
| Power panel options | LED task light, USB port, gas port |
| Knee space options | Electrical outlets, network connections, additional cord grommets |
| A-dec 41pro Simulator | A-dec 42pro Simulator | |
|---|---|---|
| Simulator style | Mobile | Stationary |
| Control block | Standard 3-position Optional 4-position |
Standard 3-position |
| Left/right conversion | Yes | Yes |
| Handpiece holder positions | Up to 4 | Up to 4 |
| User interface options | CP5i or no control pad | CP5i or no control pad |
| Quad-voltage intraoral light source | Optional | Optional |
| Foot control | Standard disc with wet/dry | Standard disc with wet/dry |
| Assistant's instrumentation | Up to 4 holders with saliva ejector, HVE, and dual HVE (optional) | Up to 4 holders with saliva ejector, HVE, and dual HVE (optional) |
| USB 2.0 support | Yes | Yes |
| Manikin | Sold separately | Sold separately |
