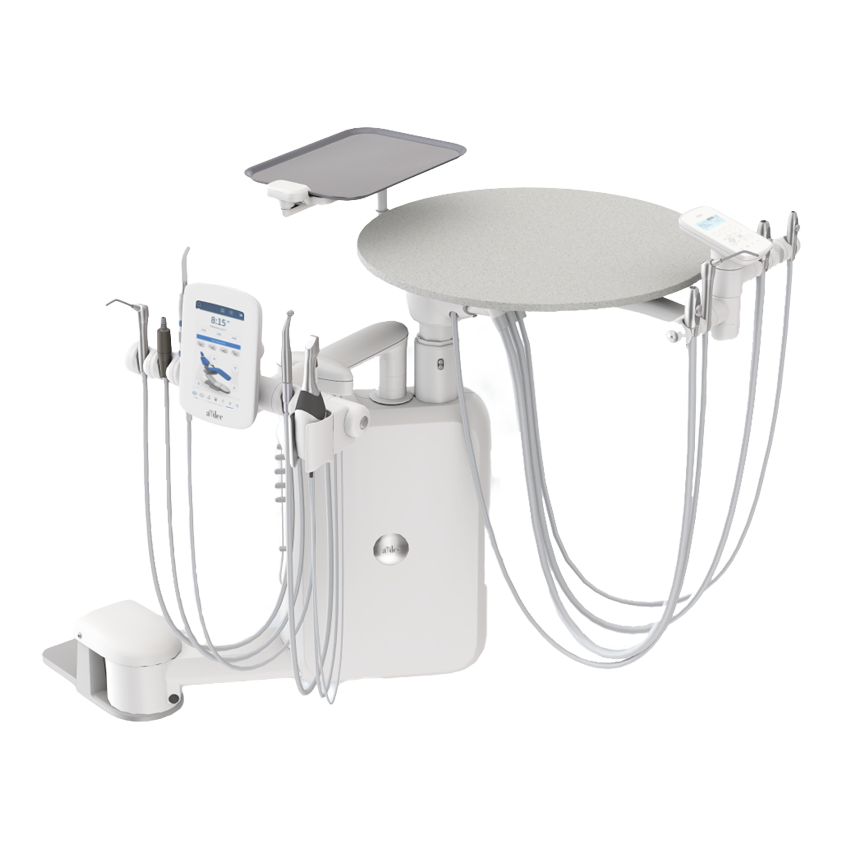

A‑dec 500 Pro 12 O'Clock Duo Delivery System
Out of sight, out of mind
When patients enter an operatory with an uncluttered, standalone dental chair, anxiety is instantly reduced. The rear-mounted A‑dec 541pro delivery system features powerful performance, ample workspace, and excellent ergonomics—while staying out of the patient's view.
- Designed to mount to A‑dec Inspire 591 and A‑dec Inspire 391 treatment consoles.
- Flexible positioning accommodates left- and right-handed dentistry.
- Independent height adjustment for doctor's controls and worksurface.
- Fully compatible with the A‑dec+ software platform.

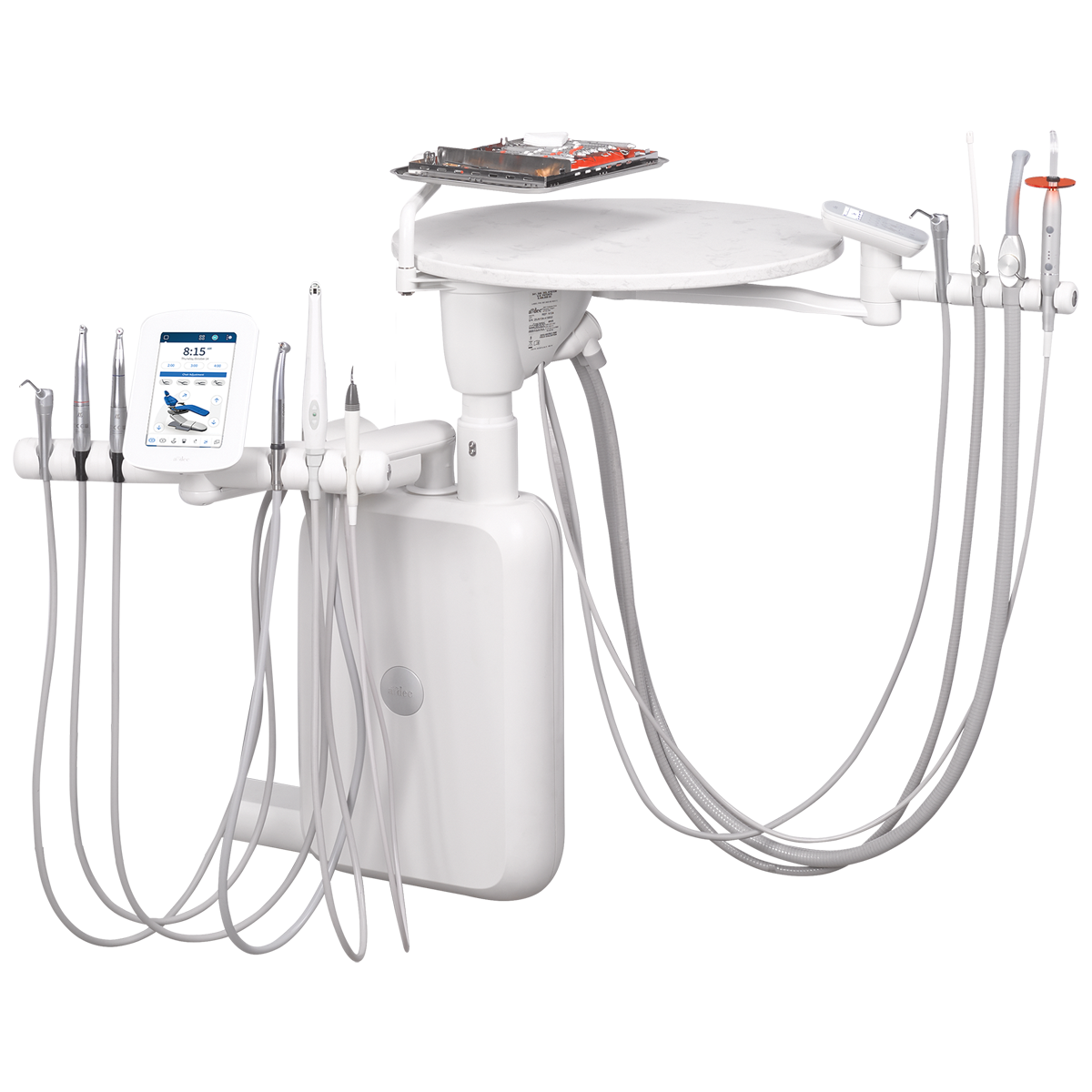

A‑dec 541pro: rear mounted, 12 o'clock duo delivery system
Compare A‑dec delivery systems
| A‑dec 500 Pro delivery systems | 12 o'clock duo |
|---|---|
| Mount options | A‑dec Inspire cabinet or Standalone |
| Style | Traditional (A‑dec 541pro) |
| Arm system | Independent manual height adjustment for doctor's controls and assistant's worksurface |
| Work surface | 22.5" (571.5 mm) diameter Solid surface or quartz |
| Ancillary accommodation | Up to 5 |
| Control block | 4-position |
| Handpiece holder positions | 5 + syringe |
| Left/right conversion | Yes |
| User interface | DS7 |
| Software updatable | Yes |
| Water coolant vaporizer | Standard |
| Quad-voltage intraoral light source | Standard |
| Integration | 15' (4.5 m) USB 2.0 cable |
| Powered USB hub | Optional |
| USB redriver | Optional |
| Foot control | Wet/dry disc with chip blower or lever foot control |
| Air and water quick disconnect | Optional |
| Time display | Yes |
| Timed flush | Yes |
Product literature
Support documents
- A-dec 541pro Duo Delivery System/545sta Assistant's Instrumentation Instructions for Use
- A-dec Quick-Disconnect Syringes Instructions For Use
- A-dec Self-Contained Water System Instructions for Use
- A-dec Waterline Maintenance Guide
- A-dec Equipment Asepsis Guide
- A-dec Equipment Maintenance Checklist
- A-dec Regulatory Information, Specifications, and Warranty
Safety Data Sheets (SDS)
A-dec+ connected dentistry
Imagine an expandable, upgradable technology platform that keeps your A-dec equipment relevant—and you ready—for whatever lies ahead.
